Roll-Over Protection System (ROPS) is a protective structure add-on to Light Commercial Vehicles (LCV) with a gross mass not exceeding 4 Tones. ROPS is designed to protect the occupants of the vehicle in the case of a roll-over which is one of the most significant causes of fatalities and injuries.
The Black Scorpion ROPS is manufactured to the highest quality and complies on specific International Standards and Adopted Best Practices. Reference: (Latest ADNOC ROPS LCV Guidlines and NCOP-7, Section LK8. LK9)
Tested in accordance to ISO 3471:2008 / 3164:2008 and ANCP 7.
Vehicles fitted with Black Scorpion ® ROPS are designed to meet the criteria below and ensure not to compromised the vehicle OEM.
A) Occupant Safety Requirements (Reference: ADNOC ROPS LCV Guidlines and NCOP-7, Section LK8. LK9)
1) Vehicle Access
2) Headspace Requirement
3) Vehicle Function
4) SRS Air Bags
5) Occupant Seat Movement
6) ROPS Main Hoops
7) Padding Requirements
B) Performance Criteria (Reference’s 3471:2008 / 3164:2008)
1) ROPS Performance Test
2) ROPS Joiner/Coupling Test
3) Welding Test
4) ROPS Safety Padding Test
- Flammability Test
- Density Test
- Energy Dissipation Test
5) ROPS SRS Airbag Test
Materials Specification:
Main Hoops and Side Members Material: CREW Pipe 48.3mm, 350 MPa Yield Strength
Lower Mounting Plates: MS 6mm, 250MPa Yield Strength
Side Mounting Brackets: MS 6mm, 250MPa Yield Strength
Bolts and Nut: M12 10.9 Grade
Safety Padding: 300 kg/m3 Density
TOYOTA MODELS

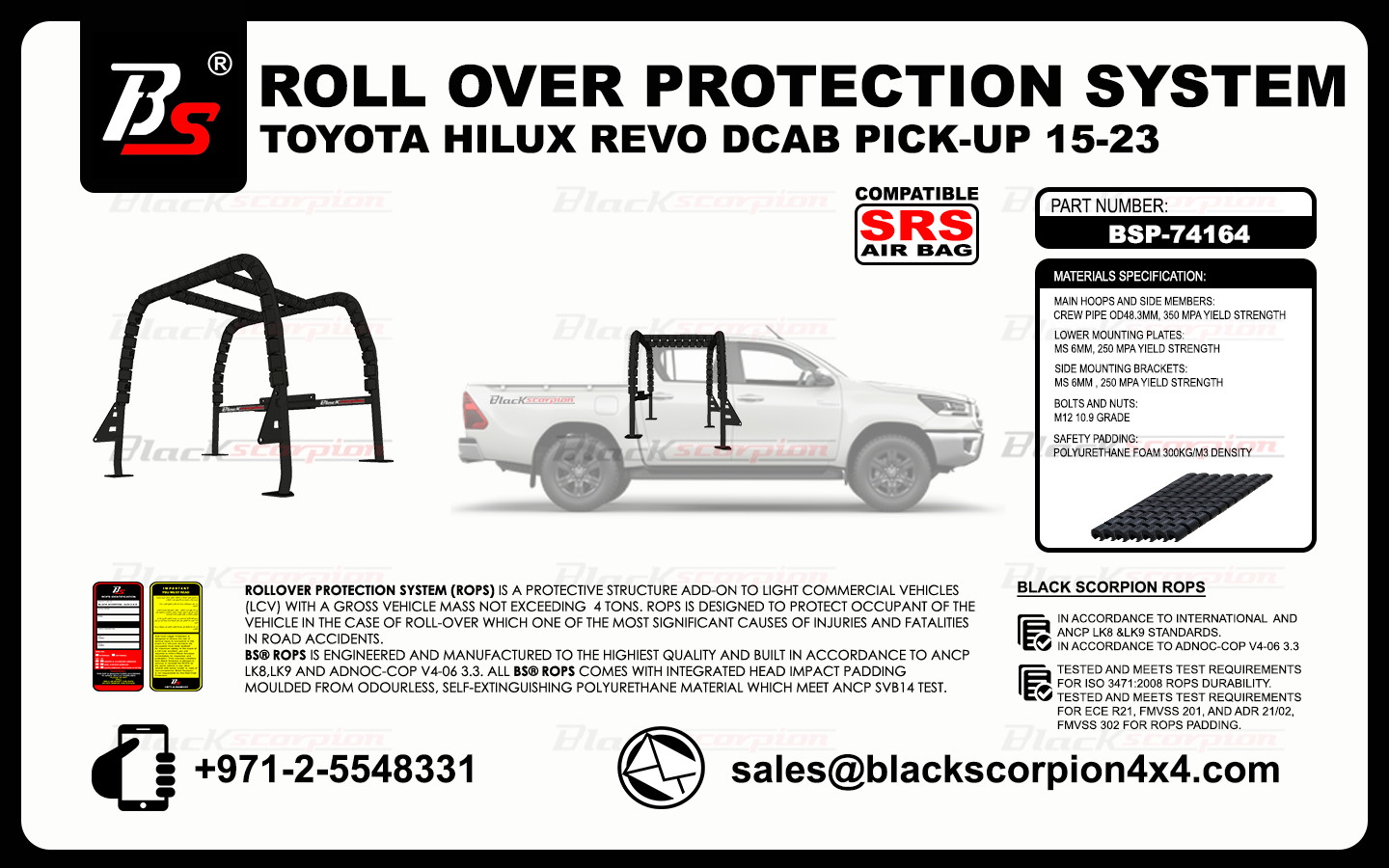

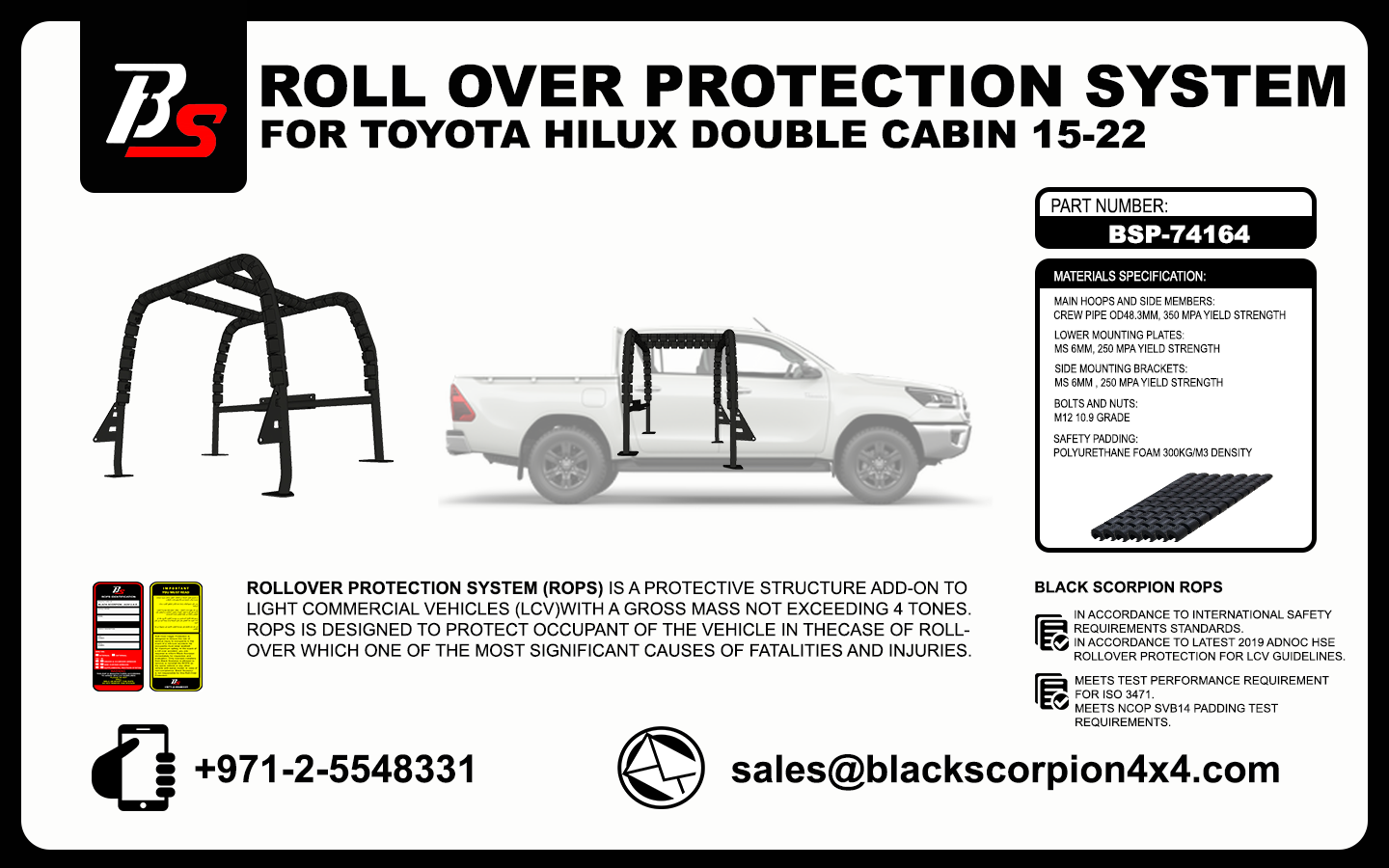

® (DOWNLOAD) Toyota Hilux Revo DCAB Pick-up SRS Compatible 2015-2023 -- P/N: BSP-74164 -- 2P Roll Over Protection System

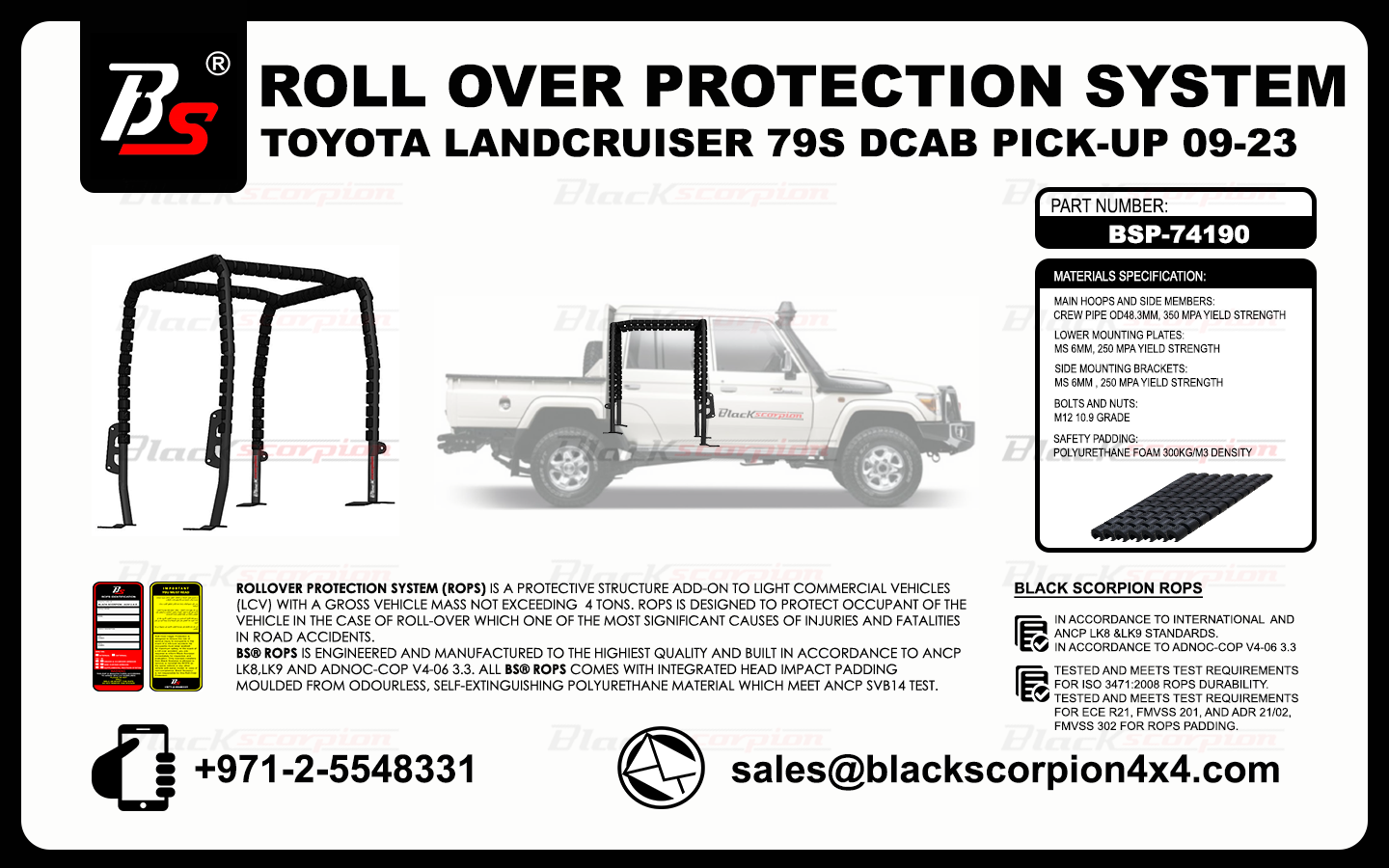

® (DOWNLOAD) Toyota Land Cruiser 79 Series DCAB Pick-up 2009-2023 -- P/N: BSP-74190 -- 2P Roll Over Protection System

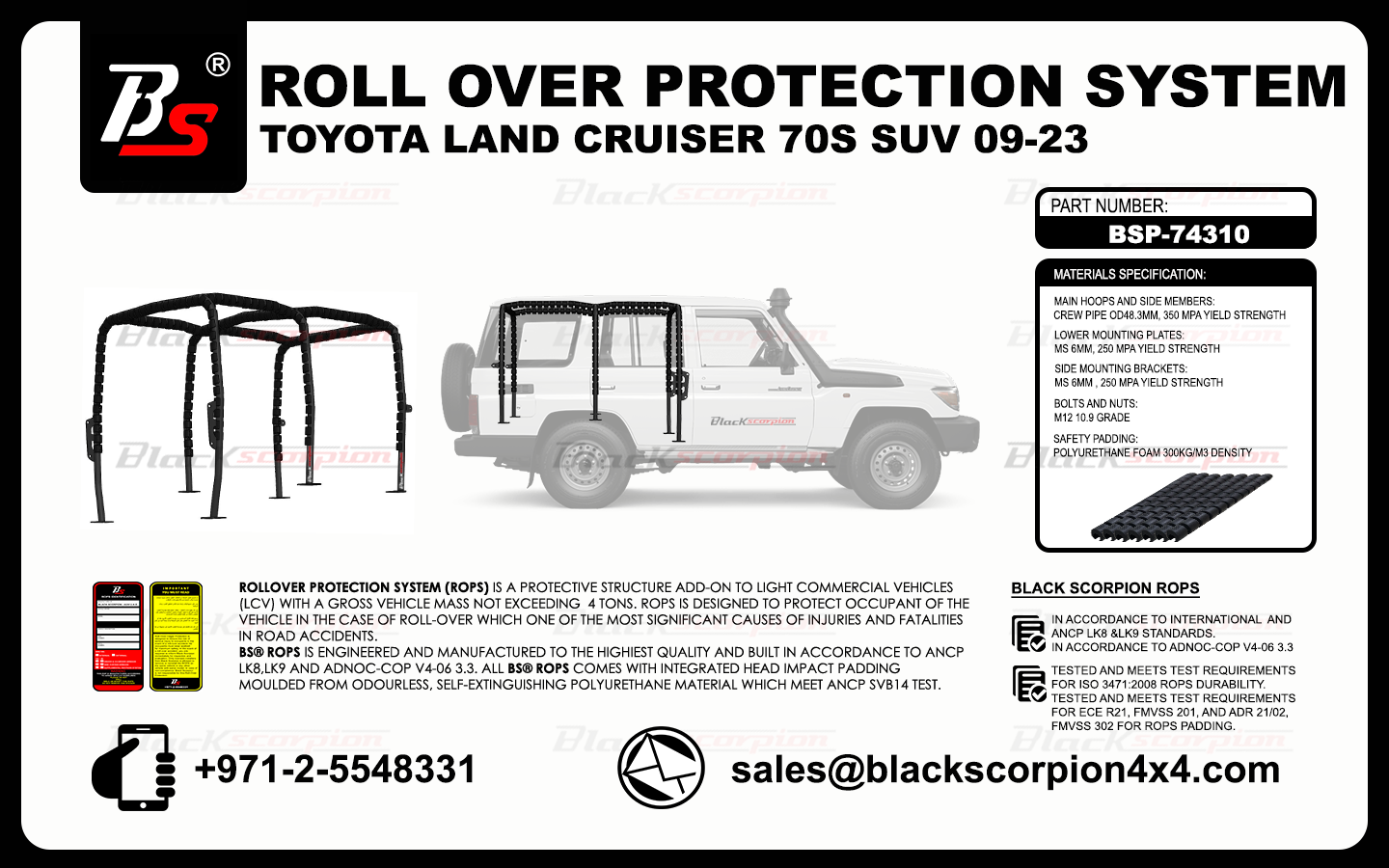

® (DOWNLOAD) Toyota Land Cruiser 70 Series SUV 2009-2023 -- P/N: BSP-74310 -- 3P Roll Over Protection System

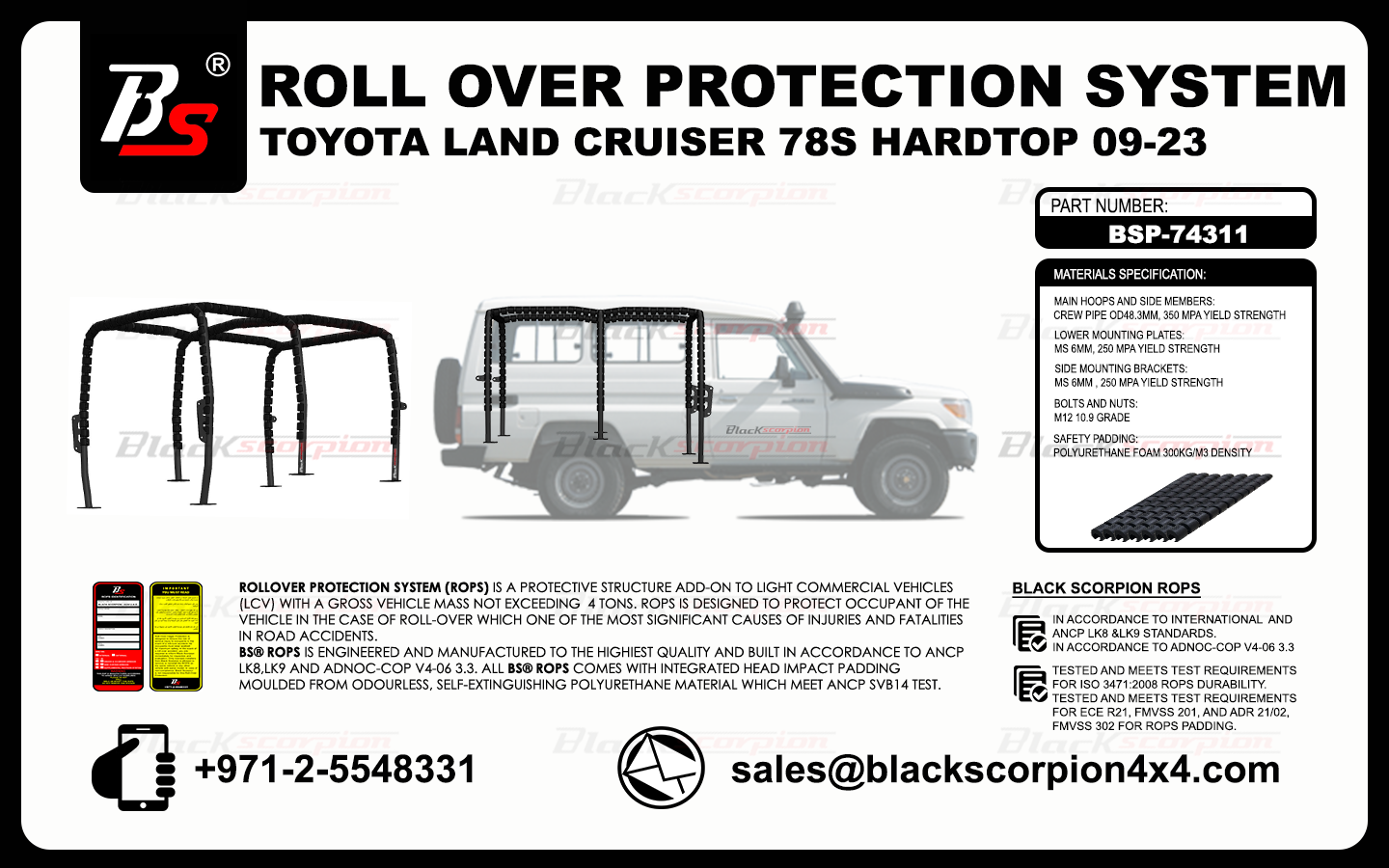

® (DOWNLOAD) Toyota Land Cruiser 78 Series HardTop 2009-2023 -- P/N: BSP-74311 -- 3P Roll Over Protection System
® (DOWNLOAD) Toyota Land Cruiser 200S SUV W/SR SRS Compatible 2009-2021 -- PN: BSP-74168 -- 3P Roll Over Protection System

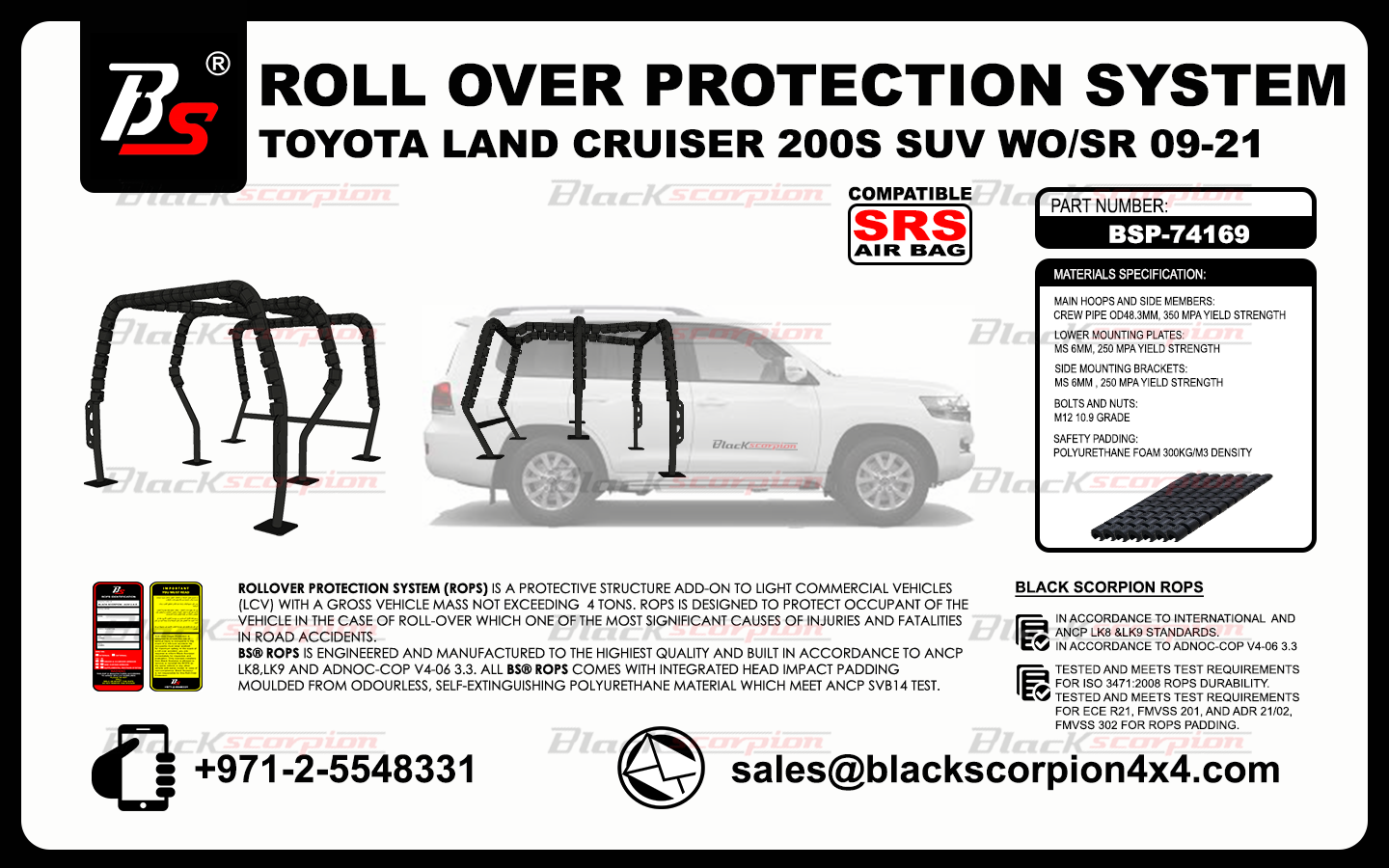

® (DOWNLOAD) Toyota Land Cruiser 200S SUV WO/SR SRS Compatible 2009-2021 -- P/N: BSP-74169 -- 3P Roll Over Protection System
® (DOWNLOAD) Toyota Land Cruiser 300S SUV W/SR SRS Compatible 2023 -- P/N: BSP-75001 -- 3P Roll Over Protection System

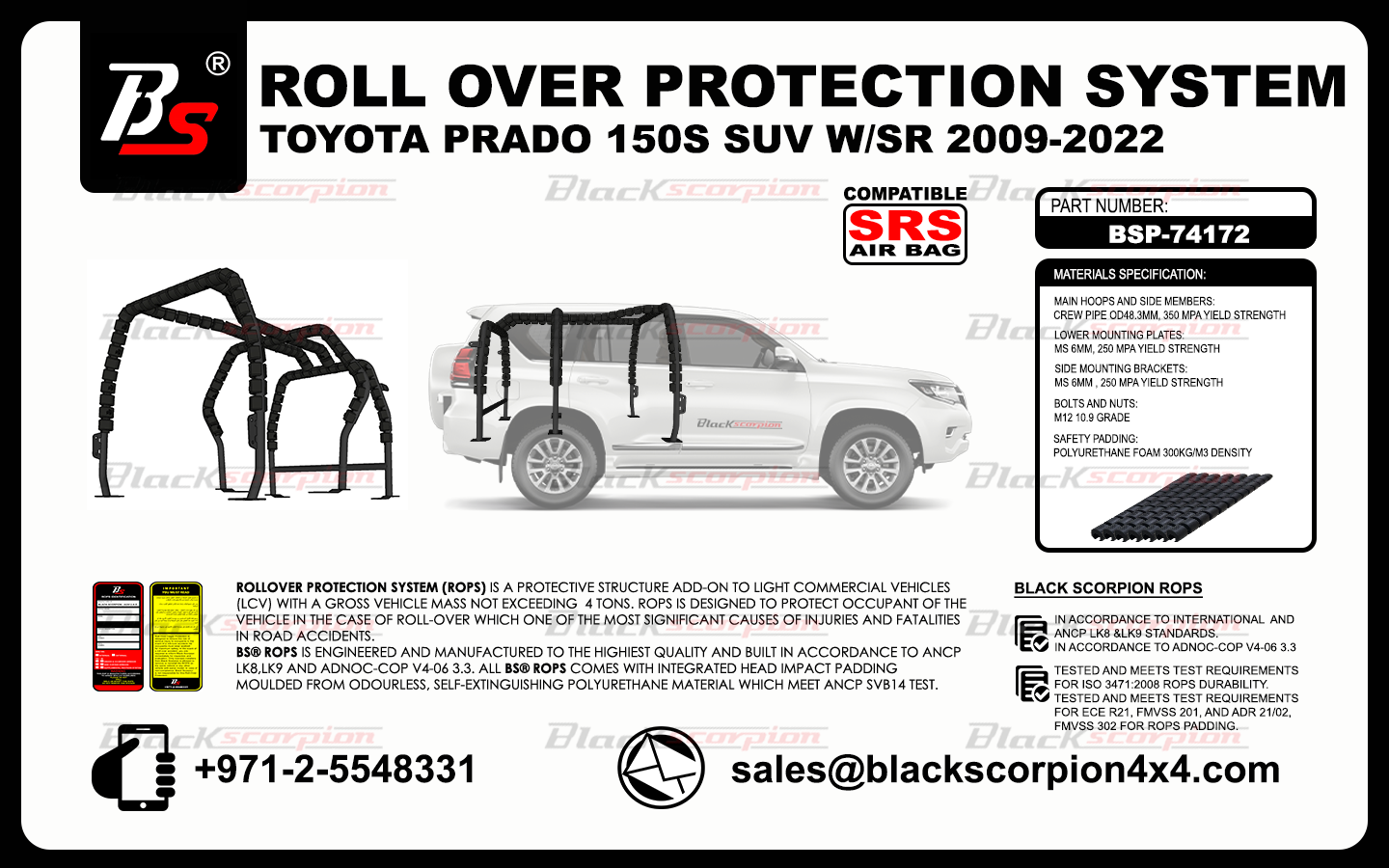

® (DOWNLOAD) Toyota Prado 150 Series SUV W/SR SRS Compatible 2009-2023 -- P/N: BSP-74172 -- 3P Roll Over Protection System

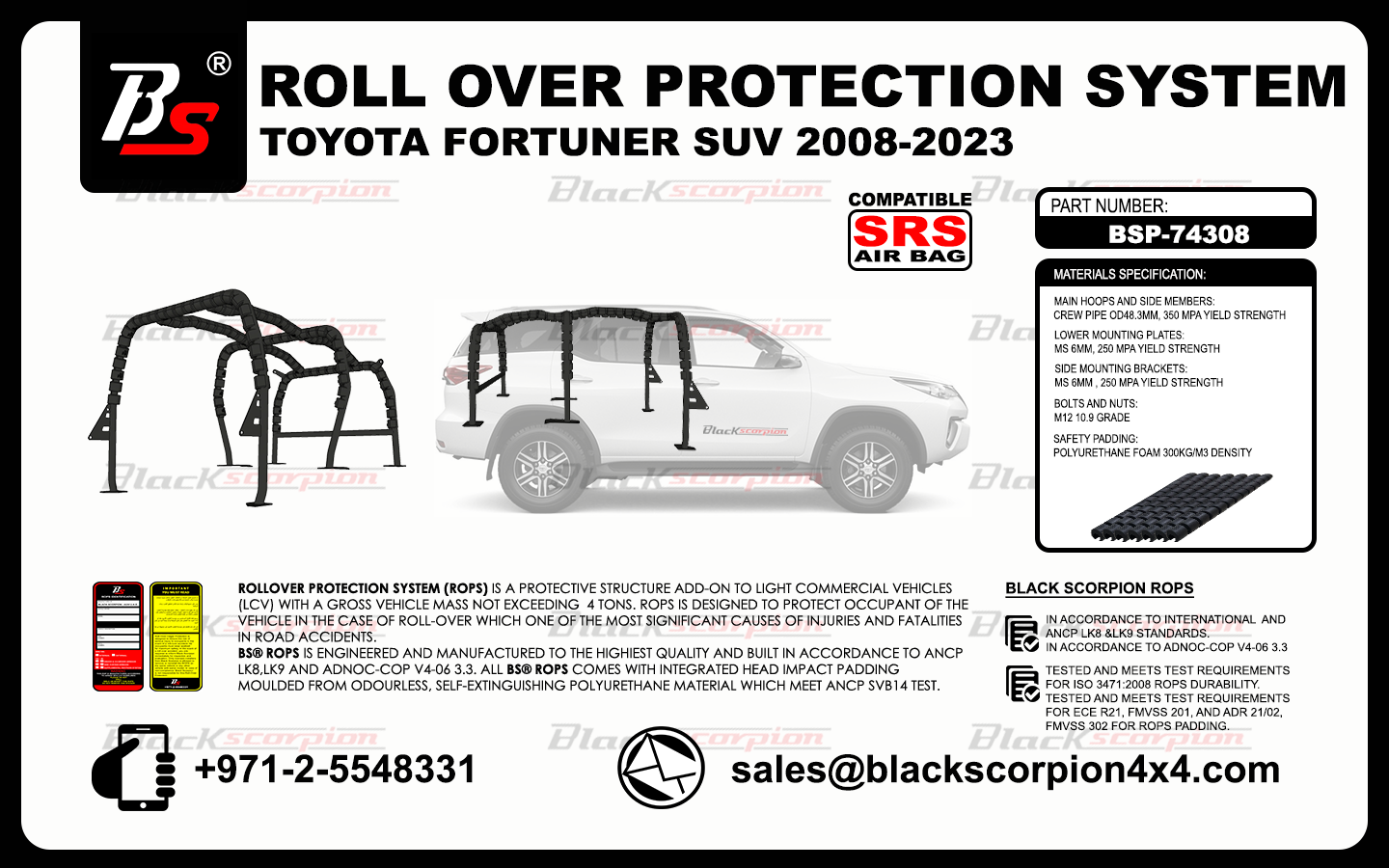

® (DOWNLOAD) Toyota Fotuner SUV 2008-2023 -- P/N: BSP: 74308 -- 3P Roll Over Protection System
FORD MODELS

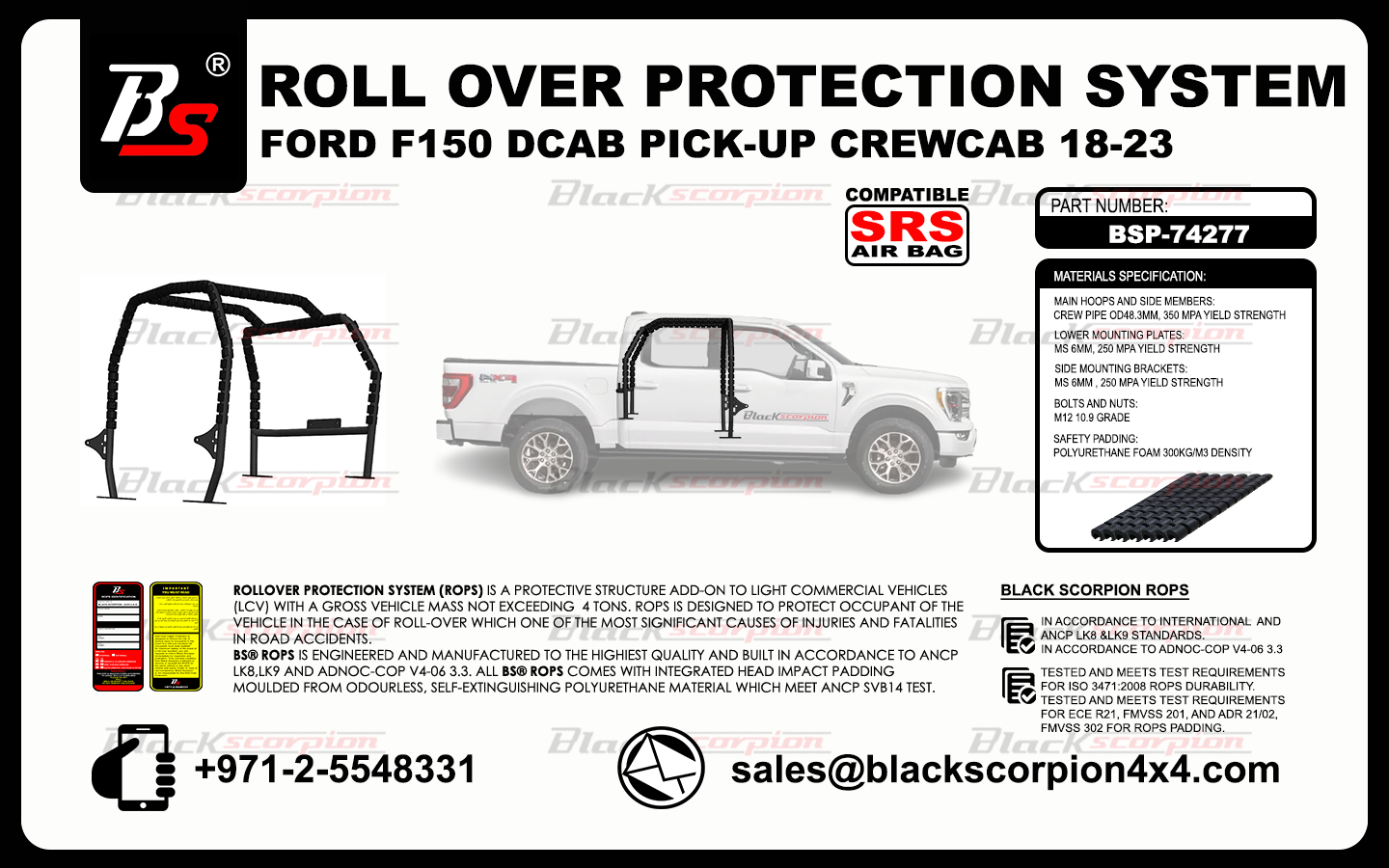

® (DOWNLOAD) Ford F150 DCAB Pick-up CrewCab SRS Compatible 2018-2023 -- P/N: BSP-74277-- 2P Roll Over Protection System

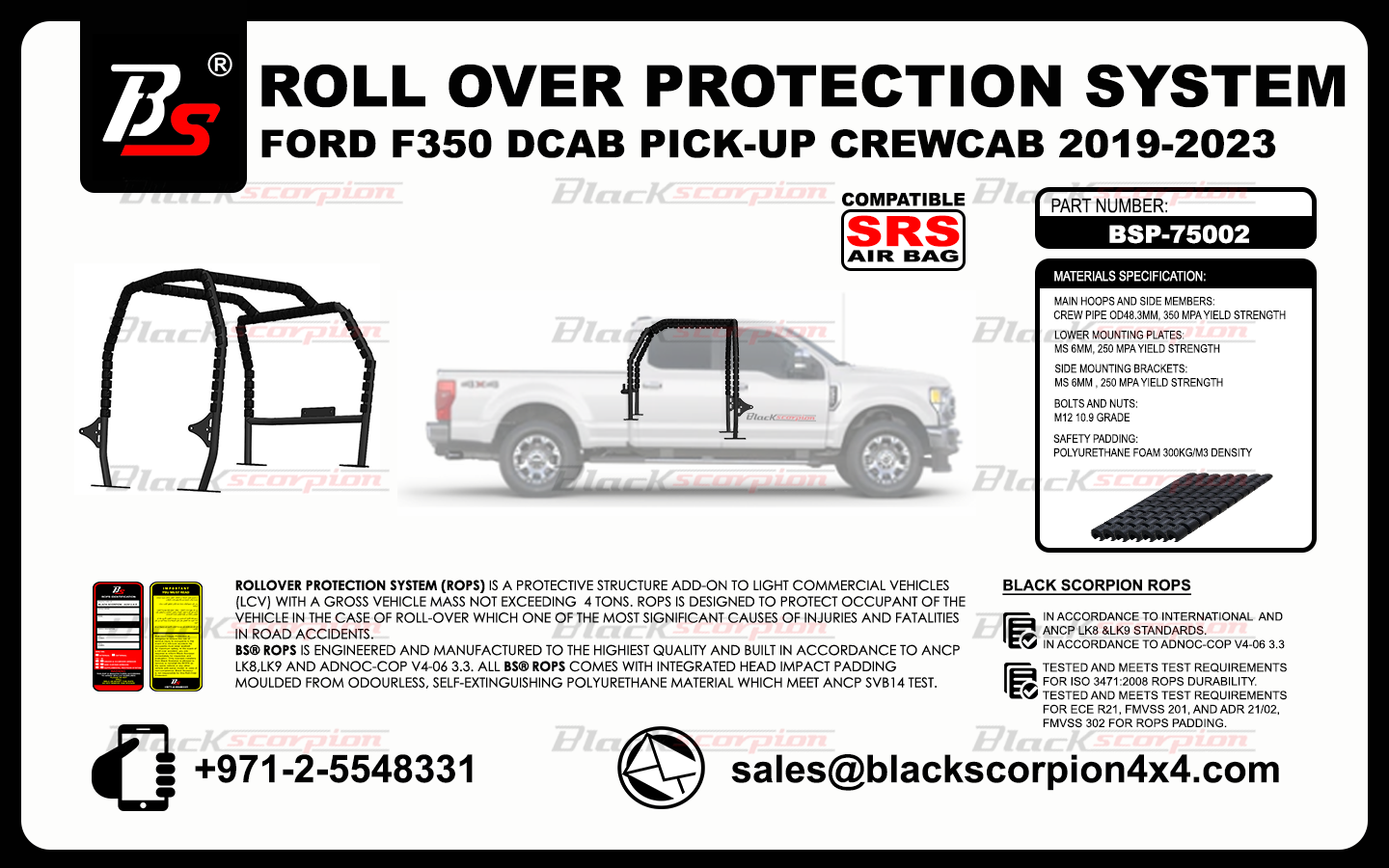

® (DOWNLOAD) Ford F350 DCAB Pick-up CrewCab SRS Compatible 2019-2023 -- P/N: BSP-75002 -- 2P Roll Over Protection System

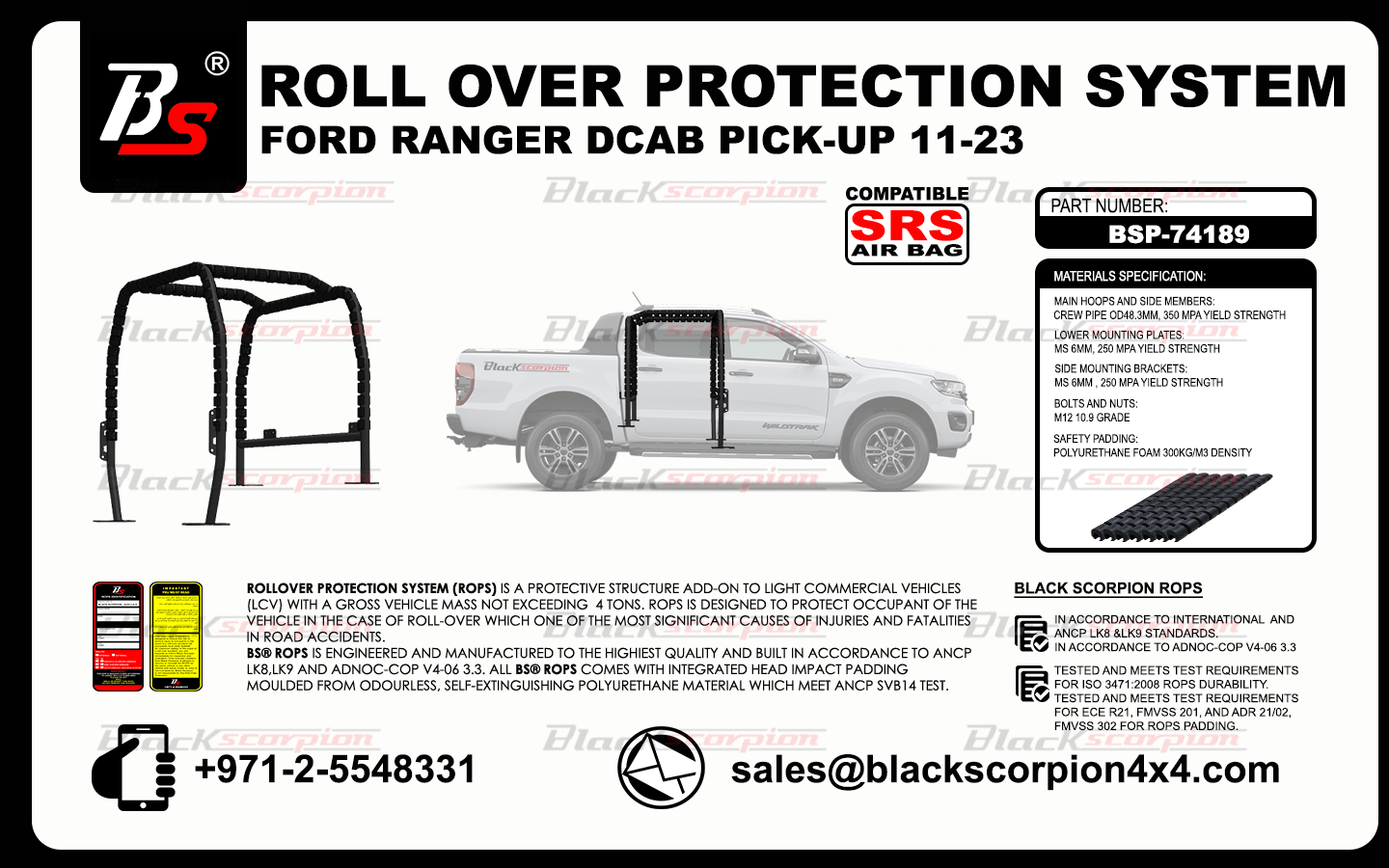

® (DOWNLOAD) Ford Ranger DCAB Pick-up 2011-2023 -- P/N: BSP-74189 -- 2P Roll Over Protection System
® (DOWNLOAD) Ford Expedition SUV XL 2019-2023 -- P/N: BSP-74200 -- 3P Roll Over Protection System
® (DOWNLOAD) Ford Edge SUV 2016-2022 -- P/N: BSP-74197 -- 3P Roll Over Protection System
CHEVROLET MODELS

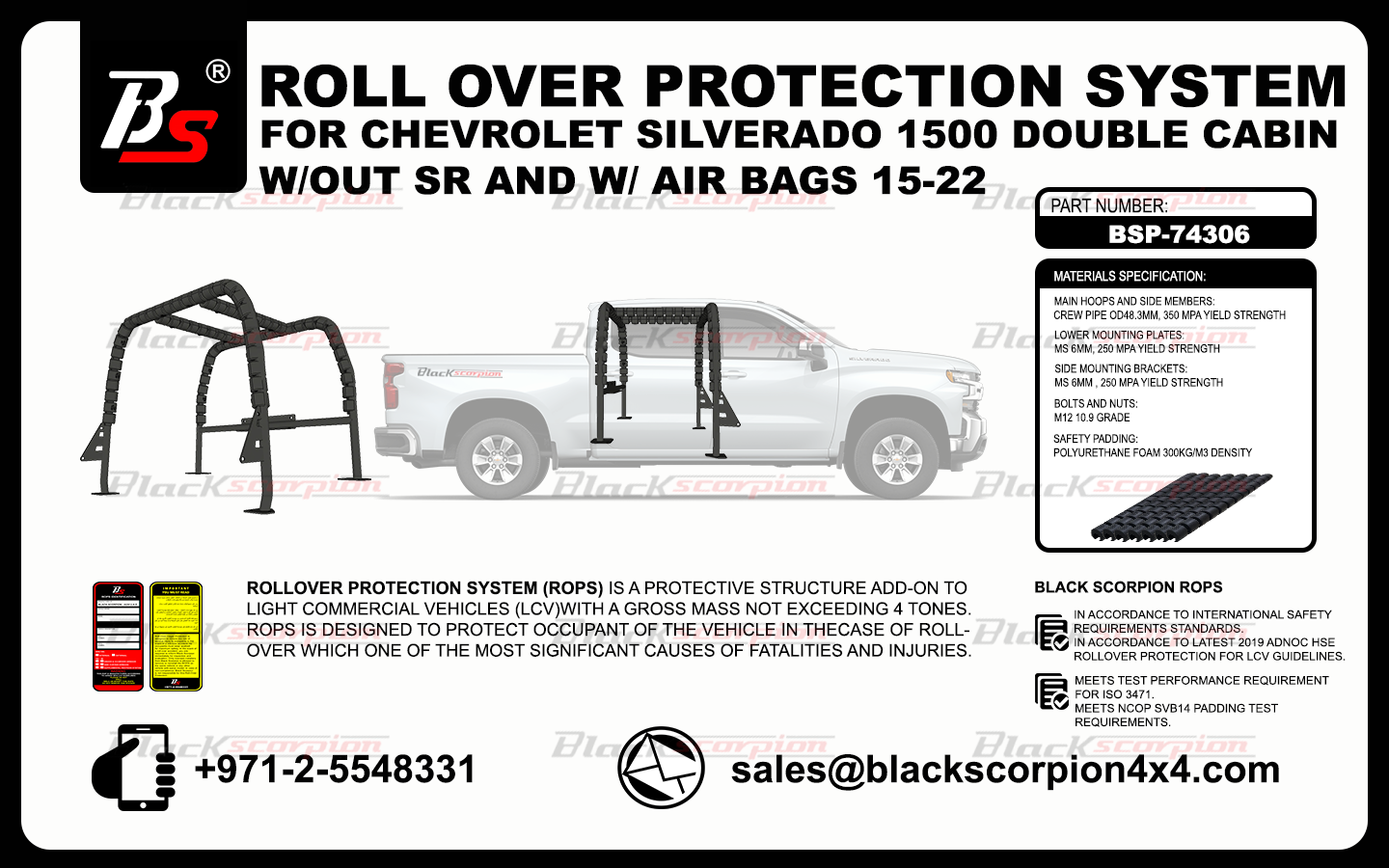

® (DOWNLOAD) Chevrolet Silverado DCAB WO/SR SRS Compatible 2015-2022 -- P/N: BSP-74306 -- 2P Roll Over Protection System

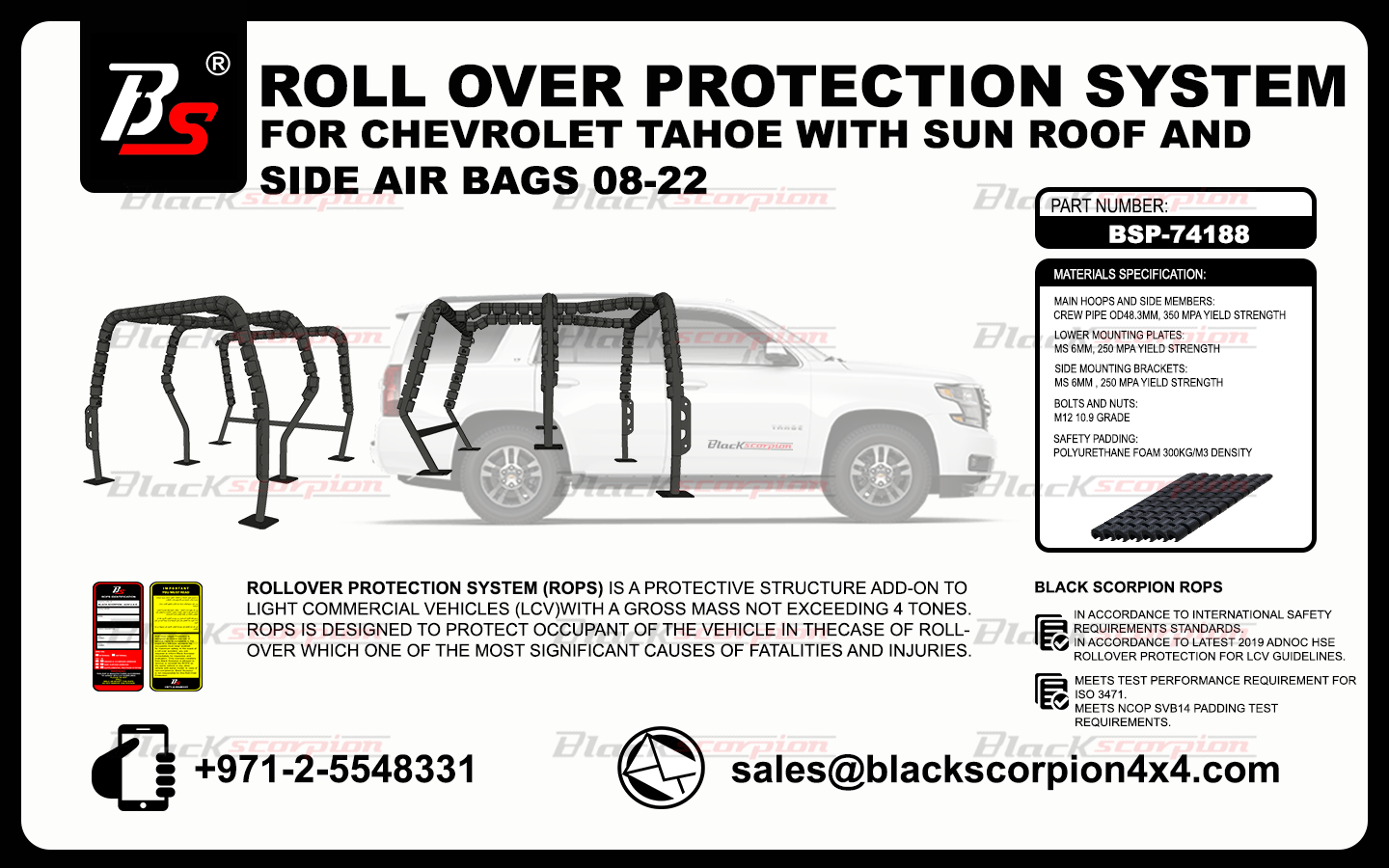

® (DOWNLOAD) Chevrolet Tahoe W/SR SRS Compatible 2008-2022 -- P/N: BSP-74188 --3P Roll Over Protection System

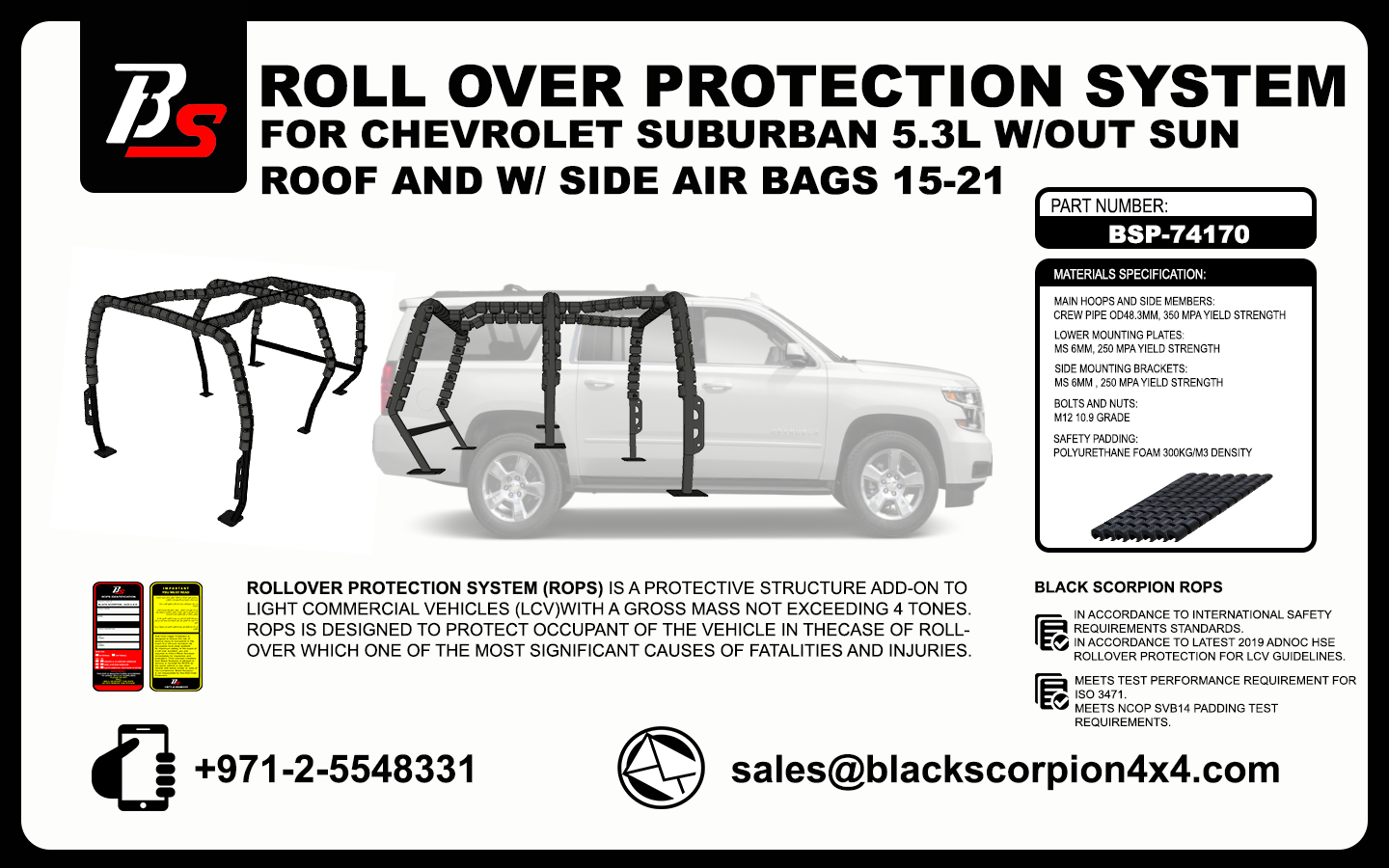

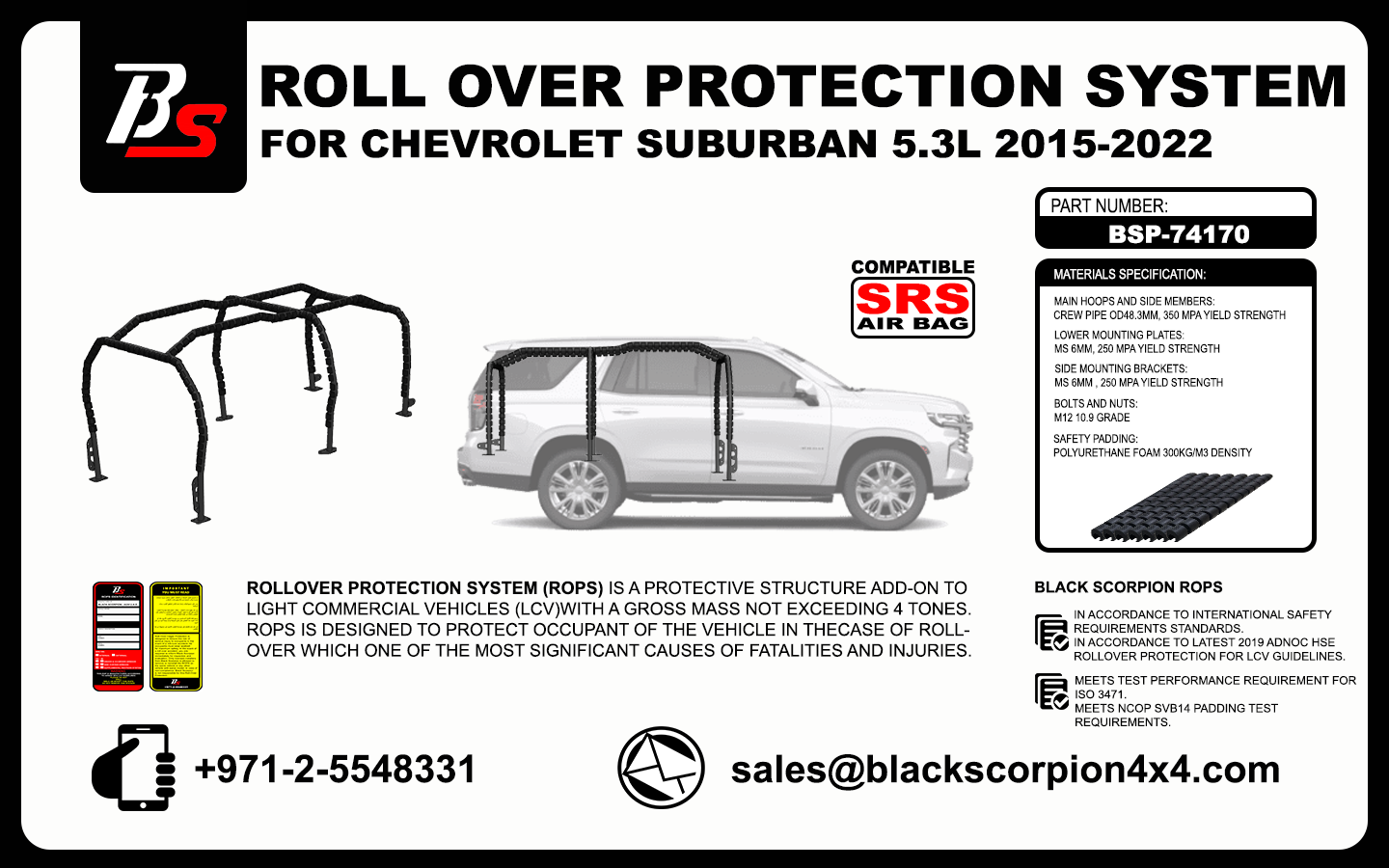

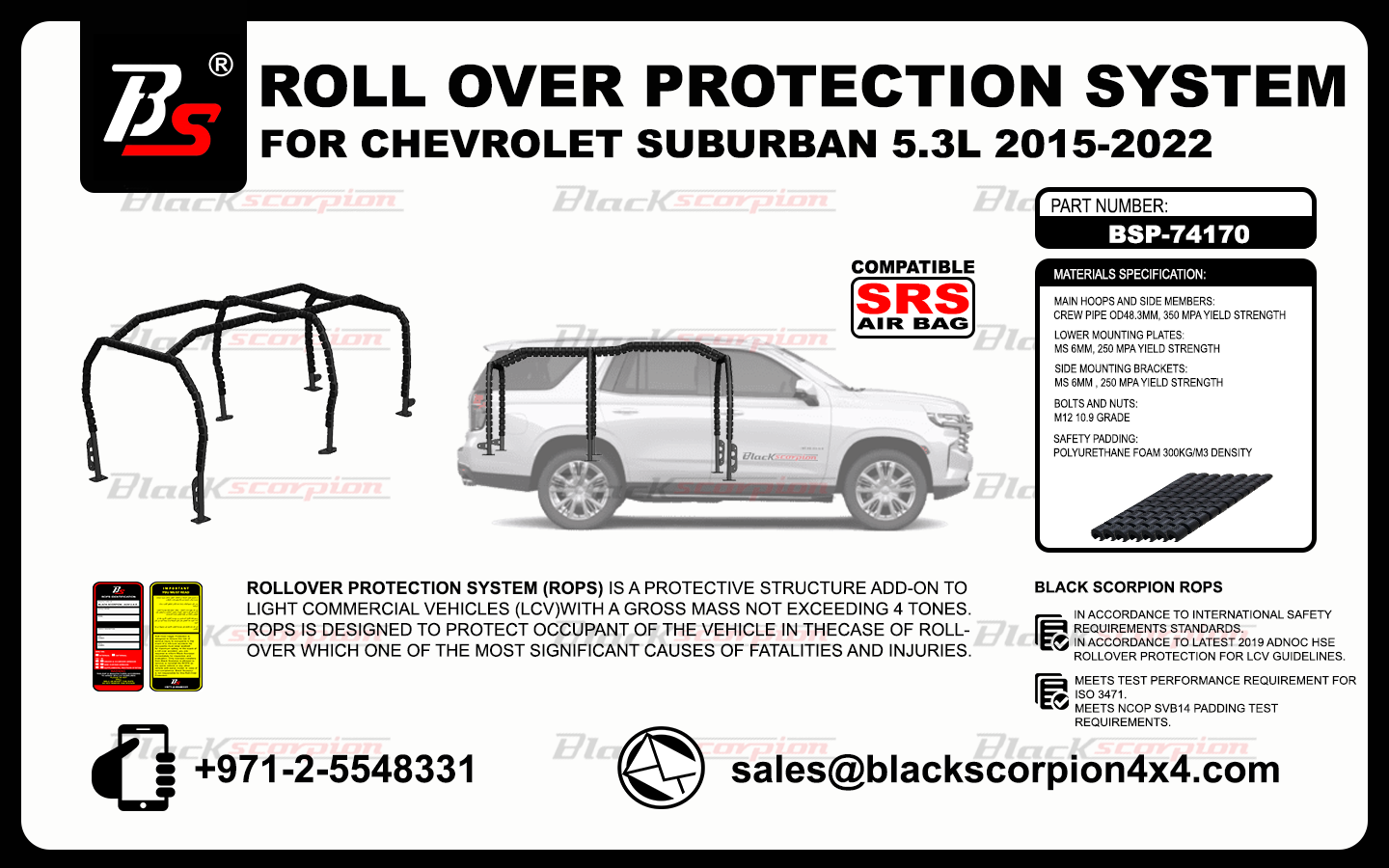

® (DOWNLOAD) Chevrolet Suburban 5.3L WO/SR SRS Compatible 2015-2021 -- P/N: BSP-74170 -- 3P Roll Over Protection System
NISSAN MODELS
® (DOWNLOAD) Nissan Navara DCAB Pick-up 2015-2022 -- P/N: BSP-74194 -- 2P Roll Over Protection System
® (DOWNLOAD) Nissan Patrol SUV W/SR SRS Compatible 2008-2023 -- P/N: BSP-74185 -- 3P Roll Over Protection System
® (DOWNLOAD) Nissan Patrol SUV WO/SR SRS Compatible 2008-2023 -- P/N: BSP-74186 -- 3P Roll Over Protection System

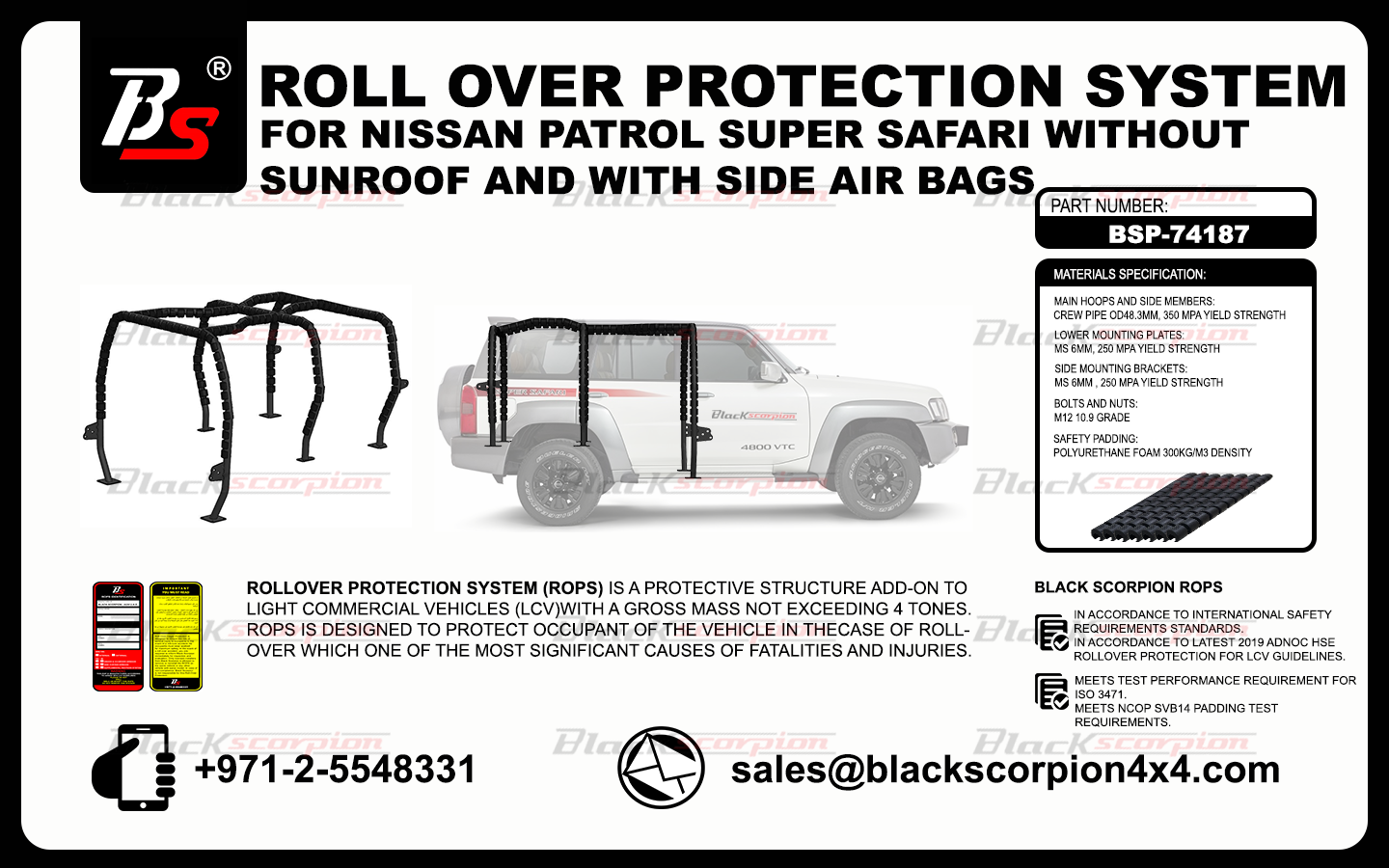

® (DOWNLOAD) Nissan Super Safari WO/SR SRS 2019-2023 Compaitble - P/N:BSP-74187 -- 3P Roll Over Protection System

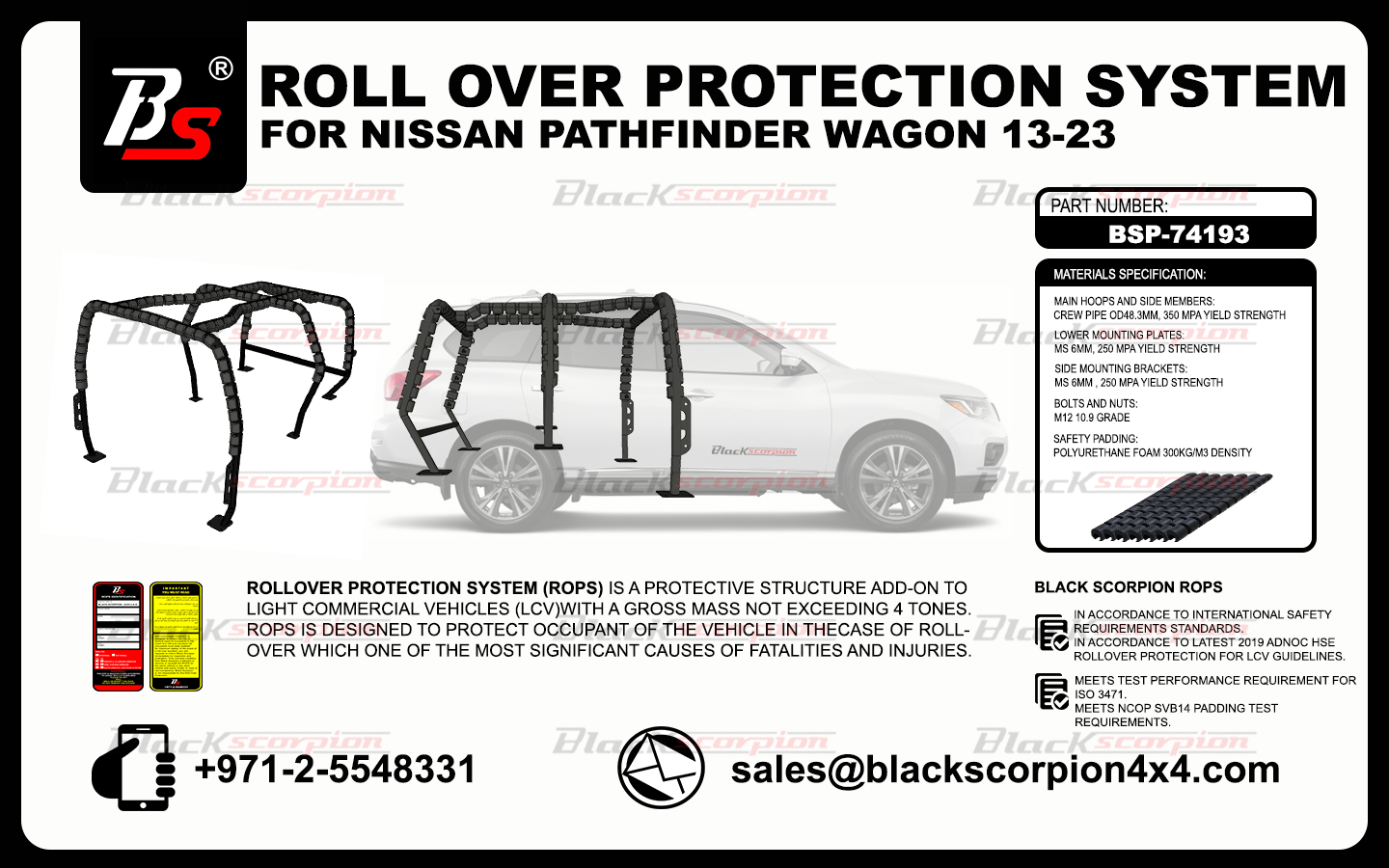

® (DOWNLOAD) Nissan Pathfinder Wagon 2013-2023 - P/N: BSP-74193 -- 3P Roll Over Protection System
MITSUBISHI MODELS

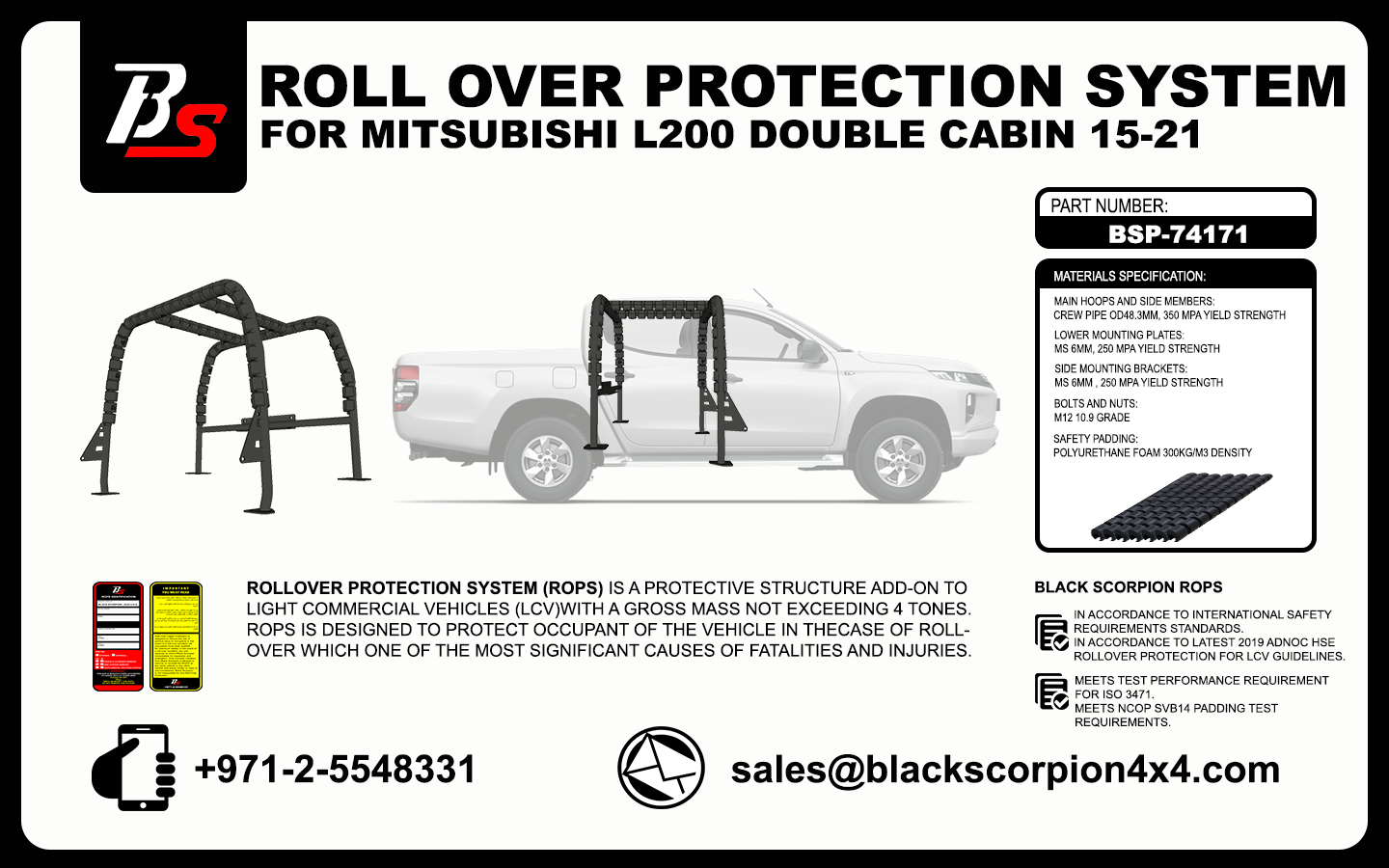

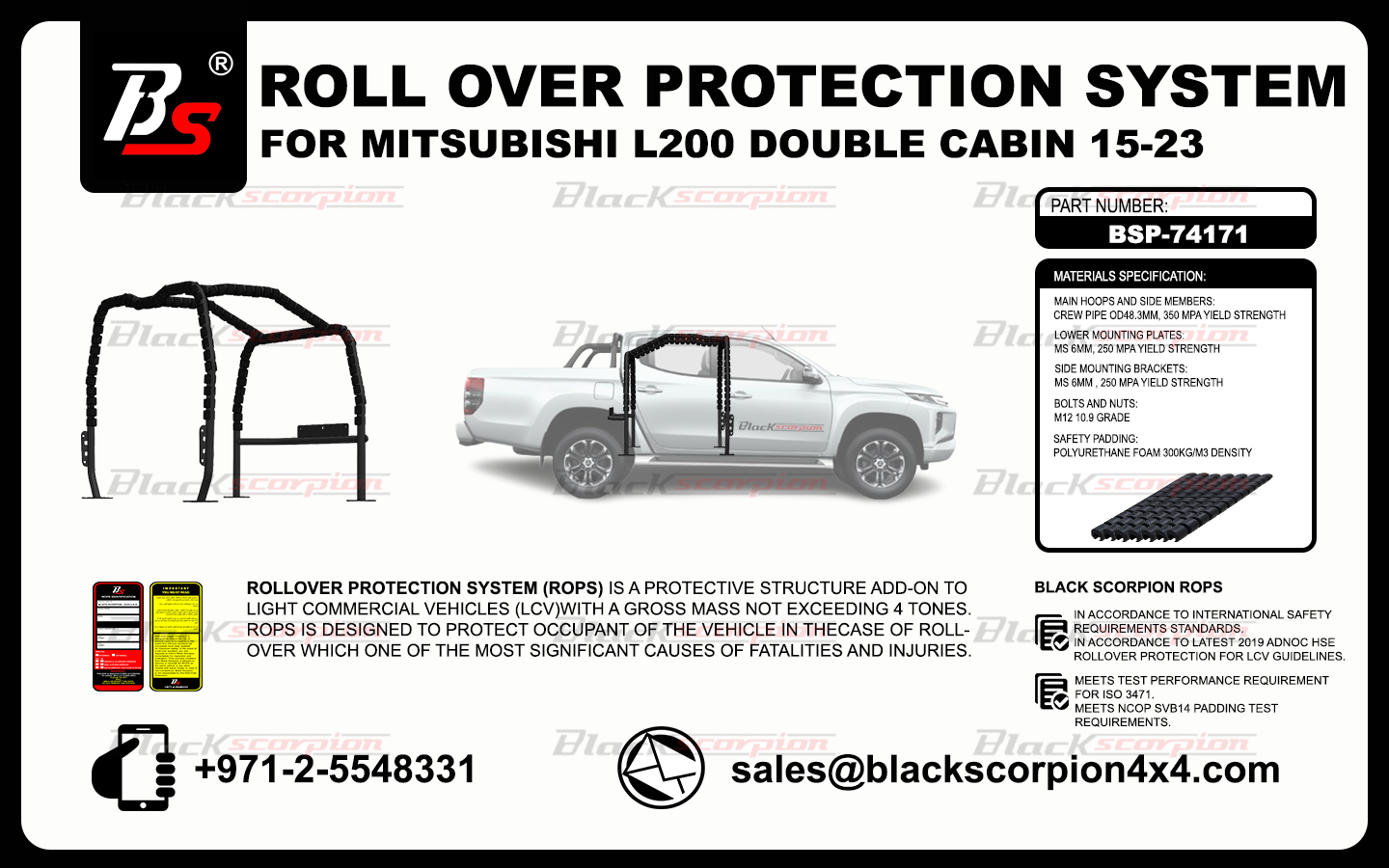

® (DOWNLOAD) Mitsubishi L200 DCAB Pick-up - 2015-2023 -- P/N: BSP-74171 -- 2P Roll Over Protection System

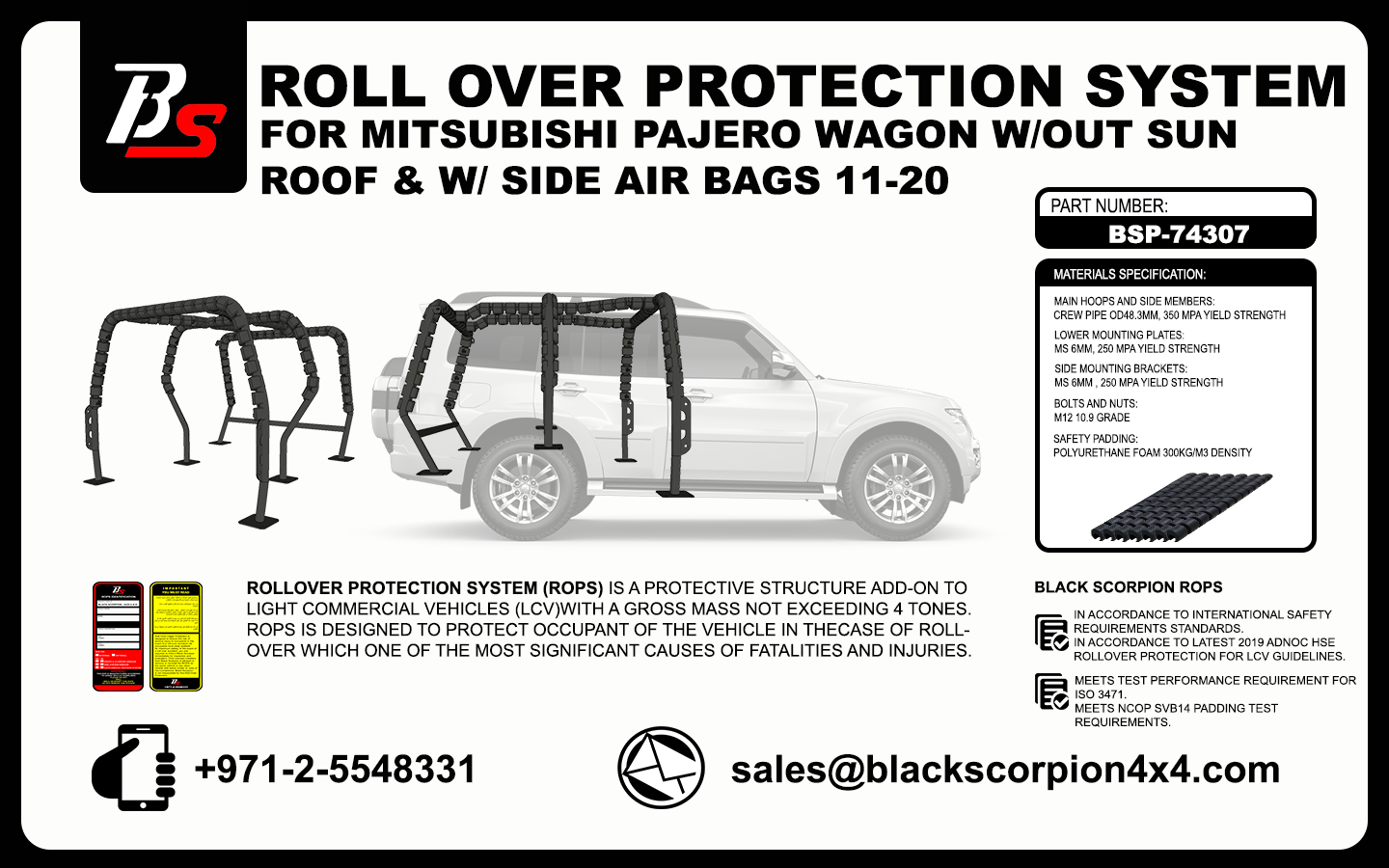

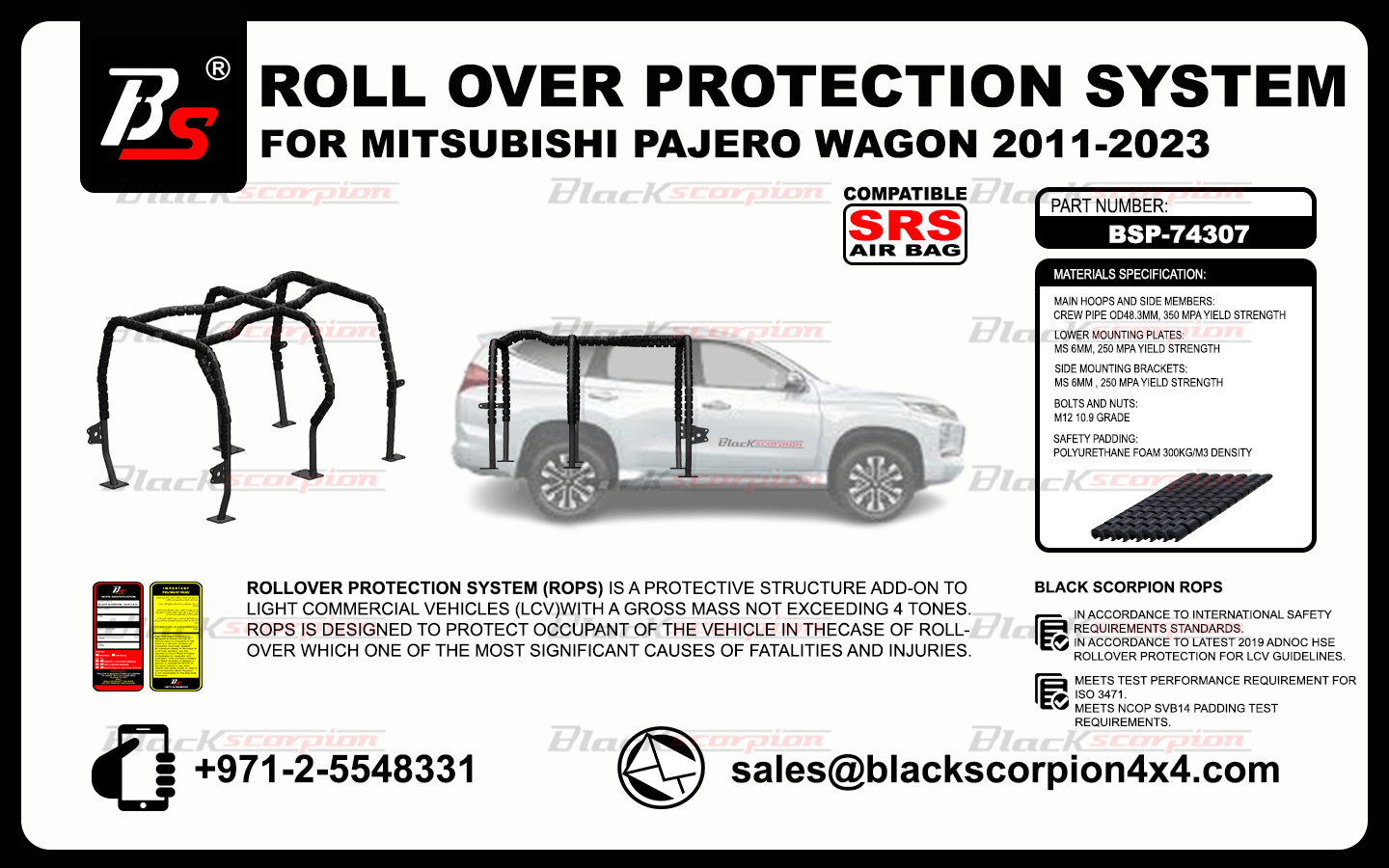

® (DOWNLOAD) Mitsubishi Pajero Wagon WO/SR SRS Compatible - 2011-2023 -- P/N: BSP-74307 -- 3P Roll Over Protection System
IZUZU MODELS
® (DOWNLOAD) Izuzu DMax DCAB Pick-up 2012-2023 -- P/N: BSP-74309 -- 2P Roll Over Protection System
MAZDA MODELS
® (DOWNLOAD) Mazda BT50 DCAB Pick-up - 2011-2023 -- P/N: BSP-74191 -- 2P Roll Over Protection System
SAIC MOTORS MODELS

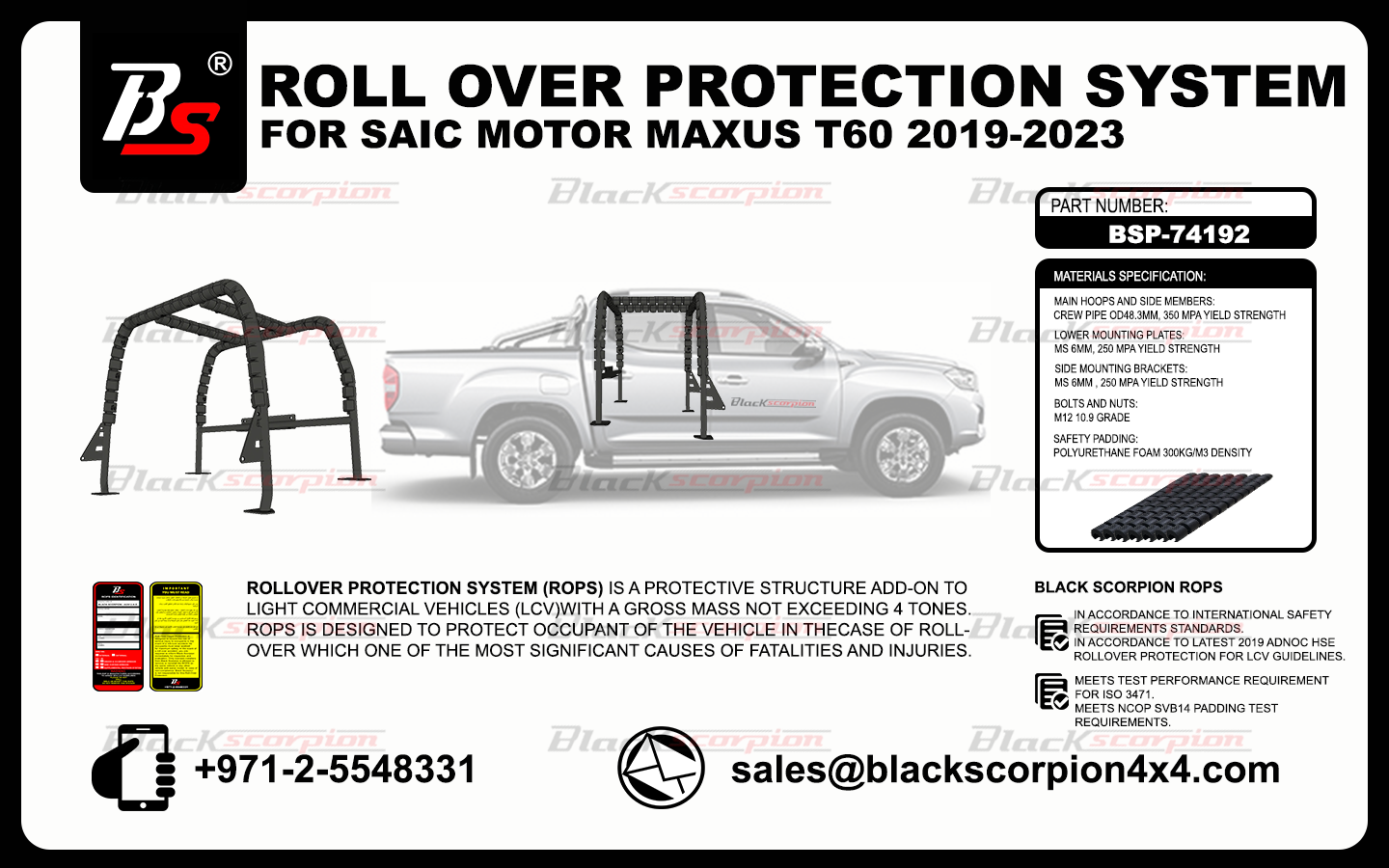

® (DOWNLOAD) Saic Motor Maxus T60 DCAB Pick-up 2019-2023 -- P/N: BSP-74192 -- 2P Roll Over Protection System
ASHOK LEYLAND MODELS

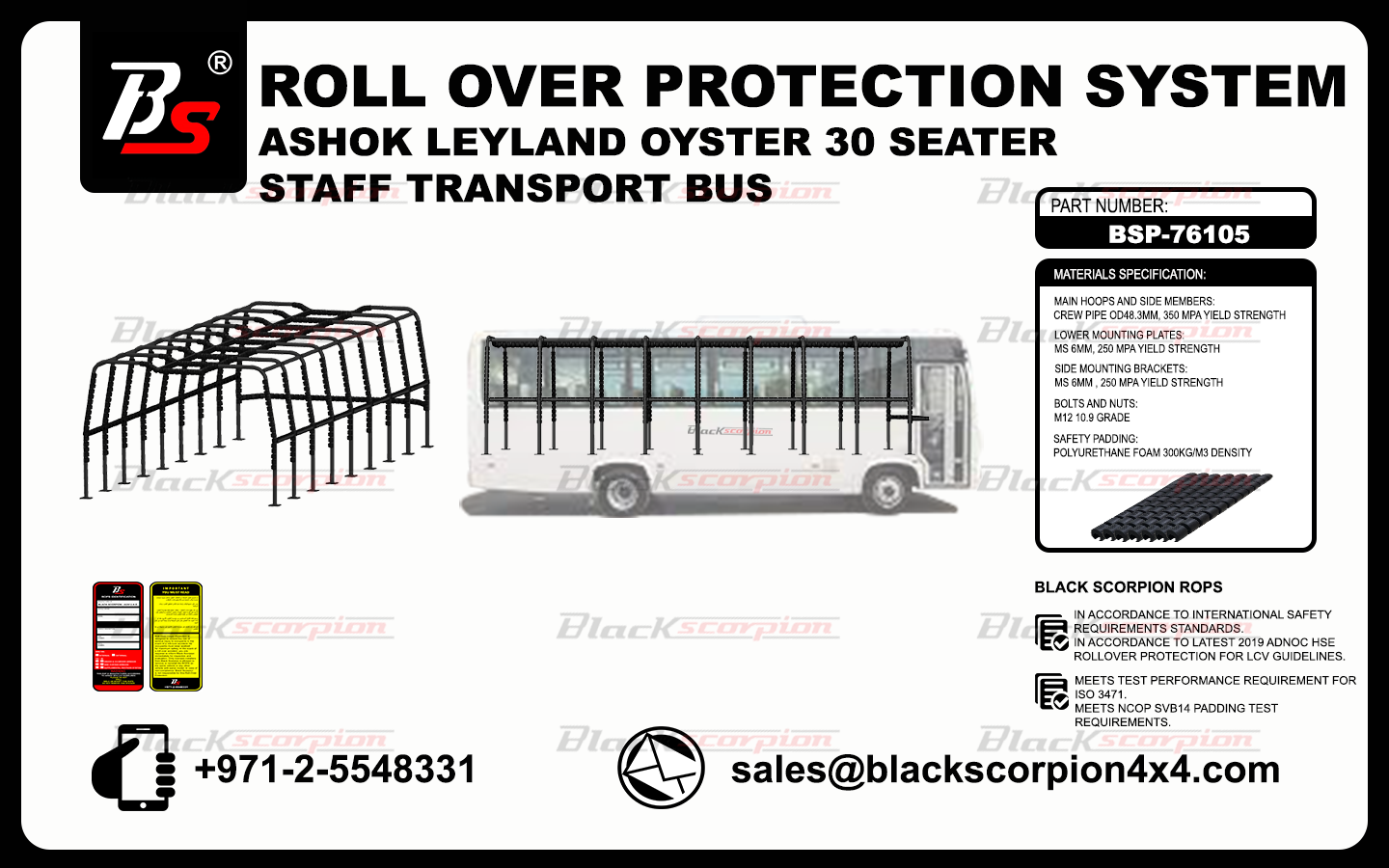

® (DOWNLOAD) Ashok Leyland Oyster 30 Seater Staff Transport Bus -- P/N: BSP-76105 -- 9P Roll Over Protection System
